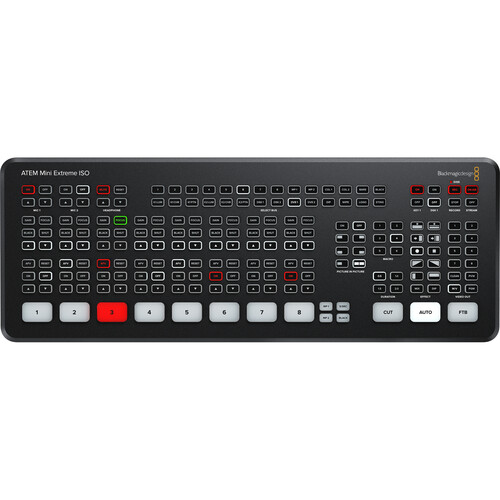

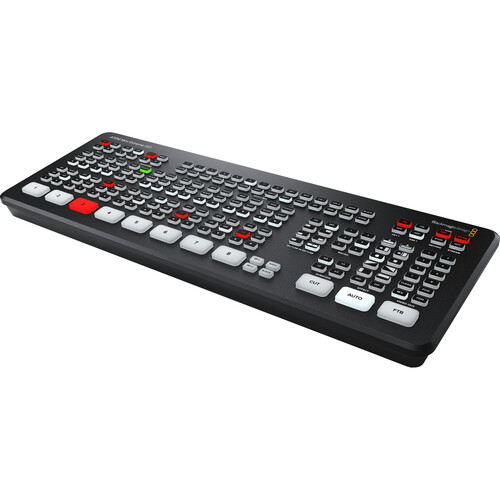

Blackmagic Design ATEM Mini Extreme ISO

0.0
http://localhost:8069/web/image/product.template/1013/image_1920?unique=5e1af2c

Key Features
8-Channel HDMI Live Streaming Switcher
Supports up to 1080p60
RTMP Streaming via Ethernet or USB-C
Record Program Out and Individual Inputs
11-Input, 2-Channel Audio Mixer
Input Frame Rate and Format Converter
Re-Sync on All HDMI Inputs
HD Multiview Output with up to 16 Views
Local and Software Switching
4 x Upstream, 2 x Downstream Keyers

3,500,000.00 TSh 3500000.0 TZS 3,500,000.00 TSh VAT Excluded 2,050,000.00 TSh

3,500,000.00 TSh VAT Excluded 2,050,000.00 TSh

Not Available For Sale

  • Brand
    • BlackMagic Design
  • No of Input Channels
  • No of Outputs
  • Video Input
    • HDMI
  • Video Output

This combination does not exist.

Quantity
Contact Us
Brand: BlackMagic Design
No of Input Channels: 8
No of Outputs: 2
Video Input: HDMI
Video Output: HDMI

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We Shipping
COUNTRY WIDE

VALUE
Guarantee

100% Secured
Payment

GREAT CUSTOMER SUPPORT


  • Blackmagic Design ATEM Mini Extreme ISO
  • 12 VDC Power Supply with International Plugs
  • Limited 1-Year Manufacturer Warranty


Blackmagic Design ATEM Mini Extreme Specs

Available M/E Layers9 M/E
Effect Types2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory20 Images
Downstream Keys2 x Chroma, Luma, DVE
Generators5 x Pattern
2 x Color
Audio Mixing2-Channel Mixing

Processing

Switching TypePushbutton, Software
Processing Resolution1080p

Input

Number of Video Input Sources8
Video Inputs8 x HDMI
Input Video FormatHDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio FormatAnalog
Embedded Audio InputHDMI: 2-Channel (per Input)

Output

Video Output Channels2
Video Outputs2 x HDMI
Output Video FormatHDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio OutputHDMI: 2-Channel
Multiview Output16-Way Multiview viaHDMI

Connectivity

Other I/O1 x RJ45
2 x USB-C
HDCP SupportNone
IP VideoH.264:
1920 x 1080 Encoding
Transport ProtocolsRTMP
Simultaneous Streams1 Streams
Recording Modes1920 x 1080p up to 60 fps (MP4)

Hardware

OS CompatibilitymacOS 10.15
macOS 11.1 or Later
Windows 10
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-FiNone
BluetoothNone
Power I/O1 x Barrel (12 VDC) Input
Power ConsumptionDevice: 36 W

Environmental

Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature14 to 140°F / -10 to 60°C
Operating Humidity0 to 70%

General

Dimensions14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight2.72 lb / 1.23 kg

Packaging Info

Package Weight4.375 lb
Box Dimensions (LxWxH)19.7 x 7.3 x 3"
