Sony UWP-D26 Camera-Mount Wireless Combo Microphone System

http://localhost:8069/web/image/product.template/2346/image_1920?unique=a86786c

Key Features
For DIY Videographer/Vlogger, Journalist
Omnidirectional Lav Mic
Bodypack Transmitter with Auto Gain
Plug-On Transmitter with 48V Phantom
True-Diversity Camera-Mount Receiver
2772 Auto-Scan Frequencies with NFC
Professional Features for Fast Workflow
Headphone Output, Bright OLED Display
6 Hr AA Batteries + USB Power
Up to 16 Mics on Set / 330' Range

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

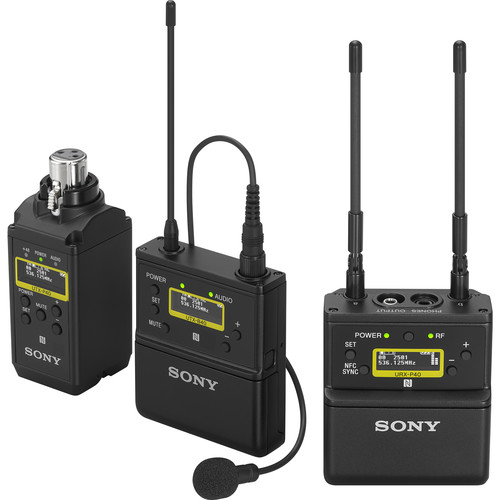

Sony UWP-D26 Camera-Mount Wireless Combo Microphone System (UC14: 470 to 542 MHz)
Sony URX-P40 Camera-Mount Wireless Receiver (UC14: 470 to 542 MHz)

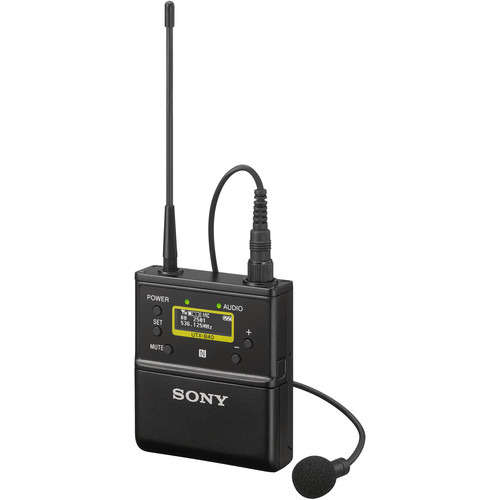

Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC14: 470 to 542 MHz)
Sony UTX-P40 Wireless Plug-On Transmitter (UC14: 470 to 542 MHz)
Mic Clip
Windscreen
2 x Belt Clips
Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
Soft Case for Plug-On
3.5mm to 3.5mm Output Cable
3.5mm to XLR-M Output Cable
Limited 1-Year Manufacturer Warranty

Sony UWP-D26 Specs

System

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies2772
Included Transmitters1 x Bodypack
1 x Plug-On
DiversityTrue Diversity
RF Frequency Band470 to 542 MHz
RF Bandwidth72 MHz
Frequency Step Size25 kHz
Max Operating Range330' / 100.6 m (Typical)
Max Transmitters per Band16
Latency0.35 ms
ModulationFM
Pilot Tone32 / 32.382 / 32.768 kHz

Receiver

Receiver TypeCamera-Mount
Mounting OptionsShoe-Mount (with Included Hardware)
Antenna2 x 1/4 Wave External, Fixed (Top-Mount)
Number of Audio Channels1
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Gain Range-12 to +12 dB (3 dB Steps)
Audio Output Level-60 dBV
Frequency Response23 Hz to 18 kHz
USB/Lightning Connectivity1 x USB-C (Bus Power)
Power RequirementsBattery, Bus Power (USB)
Battery Type2 x AA (Not Included)
Approx. Battery Life6 Hours (Alkaline)
Display & Indicators1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level)
HousingMetal
Operating Temperature32 to 122°F / 0 to 50°C
Storage Temperature-4 to 131°F / -20 to 55°C
Dimensions2.7 x 3.2 x 0.9" / 68 x 82 x 23.8 mm (without Antennas)
Weight6.2 oz / 175.8 g (with Batteries)

Transmitter

Transmitter TypeBodypack
RF Output Power5 / 30 mW
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
MutingMute Switch
Audio Input Level+60 dBV (Mic Level)
+4 dBu (Line Level)
Gain Range0 to 21 dB (3 dB Steps)
Frequency Response23 Hz to 18 kHz
Sync MethodNFC
Antenna1 x 1/4 Wave External, Fixed
Power RequirementsBattery, Bus Power (USB)
Battery Type2 x AA (Not Included)
Approx. Battery Life8 Hours (Alkaline)
USB/Lightning I/O1 x USB-C (Bus Power, Charging)
Display & Indicators1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
HousingMetal
Operating Temperature32 to 122°F / 0 to 50°C
Storage Temperature-4 to 131°F / -20 to 55°C
Dimensions2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas)
Weight5.3 oz / 149 g (without Batteries)

Microphone

Microphone TypeLavalier
Sound FieldMono
CapsuleElectret Condenser
Polar PatternOmnidirectional
Frequency Range40 Hz to 20 kHz
Sensitivity-43 dB at 1 kHz
Output1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length3.9' / 1.19 m
Operating Temperature32 to 122°F / 0 to 50°C
Storage Temperature-4 to 131°F / -20 to 55°C
Length0.77" / 19.5 mm
Diameter0.27" / 6.8 mm
Weight0.57 oz / 16.2 g

Transmitter 2

Transmitter TypePlug-On
RF Output Power5 / 40 mW
Audio I/O1 x XLR 3-Pin Female Input (Lockable)
Phantom Power+48 V
MutingOff/On Switch
Audio Input Level-60 dBV
Gain Range0 to +48 dB (3 dB Steps)
Frequency Response23 Hz to 18 kHz
Sync MethodNFC
Antenna1 x Internal
Power RequirementsBattery, Bus Power (USB)
Battery Type2 x AA (Not Included)
Approx. Battery Life6 Hours (Alkaline)
USB/Lightning I/O1 x USB-C (Bus Power)
Display & Indicators1 x OLED (Audio Level, Battery Status, Peak, RF Output Power)
HousingMetal
Dimensions1.5 x 3.9 x 1.5" / 38 x 98 x 38 mm
Weight4.9 oz / 139 g (without Batteries)

Packaging Info

Package Weight2.085 lb
Box Dimensions (LxWxH)12.1 x 10.9 x 2.9"


Specifications

Brand Sony
Max Operating Range 300 ft & Up
Receiver Type Camera-Mount,
Transmitter Type Combo-Bodypack / Plug-On,
System Type Combo
users Per system 2
